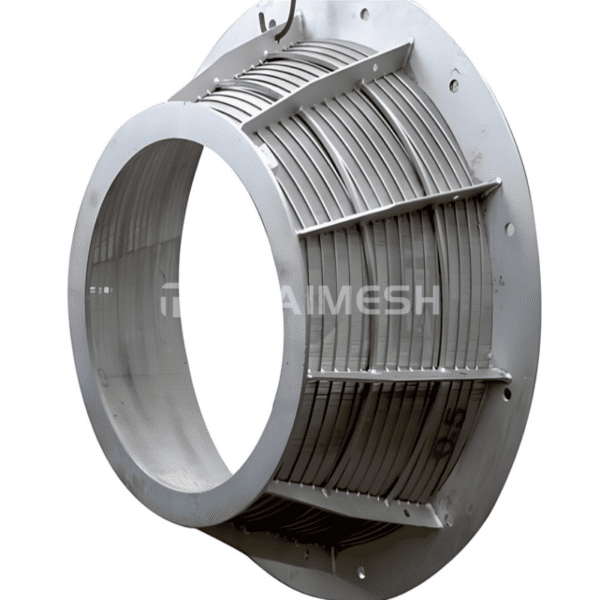

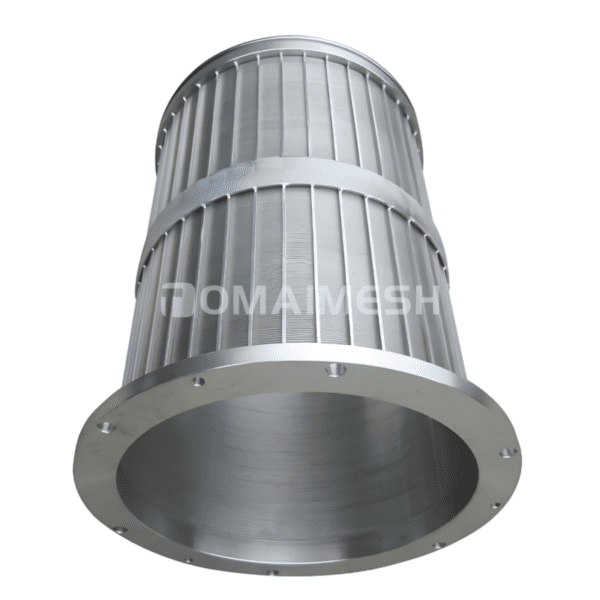

Industrial Wedge Wire Centrifuge Basket

Material: 304/316 Stainless Steel
Process: Photochemical Etching Technology
Pattern Options: Customizable (Geometric/Organic/Digital)
Thickness Range: 0.1mm-2.0mm (±0.02mm)
Finish: Satin/Mirror/Color Coated
Application: Architectural Cladding/Decorative

Send Email Download

Industrial Wedge Wire Centrifuge Basket: Material & Construction

Advanced Material Selection:
- 316L/904L Stainless Steel: Corrosion-resistant (PREN ≥34) with 0.05–2 mm slot widths, ideal for pharmaceutical API separation or caustic chemical recovery.
- Duplex 2205/2507: High strength (550–800 MPa yield) and chloride resistance for offshore drilling mud processing or seawater desalination brines.
- Hastelloy C-276/C-22: Resists pitting and stress corrosion (per ASTM G48) in acidic environments like mineral acid purification or electroplating baths.
- Titanium Gr.2/5: Lightweight and biocompatible for biopharma cell harvesting or titanium dioxide slurry dewatering.
Robust Structural Design:
- V-Shaped Wedge Wire Profile: Precision-welded wires (0.5–10 mm pitch) for non-blinding, self-draining performance under 3,000+ G-forces.
- Reinforced Support Rings: Forged rings (20–100 mm thickness) to withstand rotational stresses up to 10,000 RPM (ASME BPV Section VIII compliant).

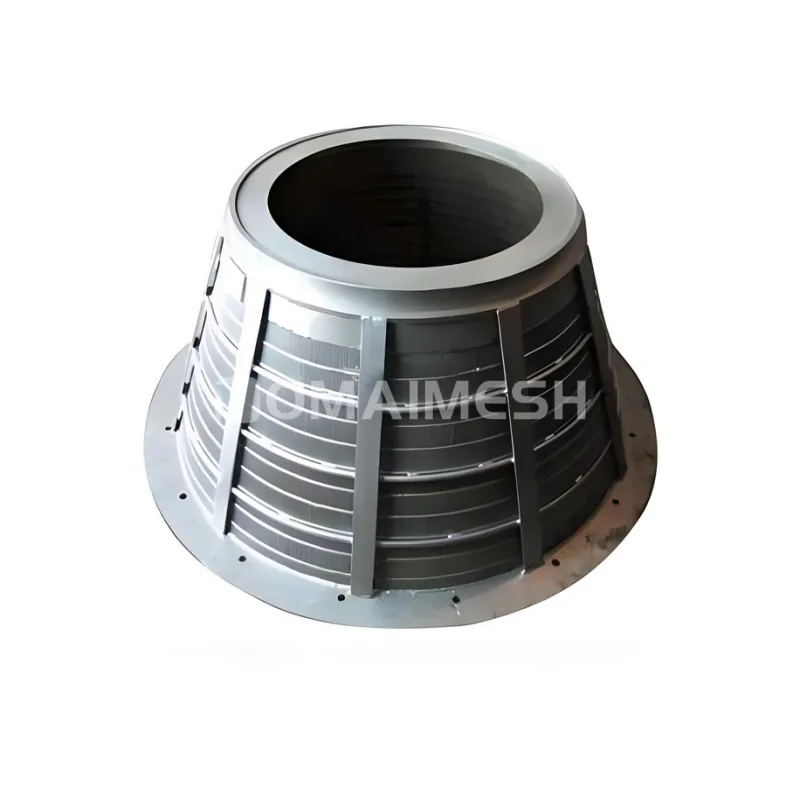

Read More About centrifugal basket filter

Read More About centrifuge basket for sale

Industrial Wedge Wire Centrifuge Basket: Performance Advantages

High-Efficiency Separation:
- Open Area (15–50%): Maximizes throughput while retaining ≥99% of 5–500 µm particles in API crystallization or mineral concentrate recovery.
- Precision Slot Consistency: ±0.02 mm tolerance for sharp cut-points in nanoparticle classification or edible oil refining.
Enhanced Durability:
- Electropolishing/Passivation: Achieves Ra ≤0.1 µm for hygienic compliance in vaccine production (ASME BPE-2019).
- Plasma Nitriding: Surface hardness up to 1,200 HV for abrasion resistance in kaolin clay processing (ASTM E384).
Operational Versatility:
- Temperature Range: -196°C to 400°C (suitable for cryogenic biotech to hot asphalt centrifugation).
- Speed Capacity: Compatible with batch or continuous centrifuges at 1,000–12,000 RPM (ISO 9001 certified).

Precision Manufacturing & Testing

Industrial Wedge Wire Centrifuge Basket: Precision Manufacturing & Testing

Cutting-Edge Fabrication:
- Laser Welding: Ensures ≤0.05 mm weld deviation for unbalanced load tolerance (ISO 13919-1).
- Dynamic Balancing: Achieves G2.5 balance grade (per ISO 1940) for vibration-free operation.
Rigorous Quality Control:
- Hydrostatic Burst Testing: Validates integrity at 2x operational pressure (e.g., 150 bar for 75 bar systems).
- Fatigue Life Testing: Simulates 10^7+ cycles for high-G industrial centrifuges (ASTM E466).
- Material Certifications: Full EN 10204 3.1/3.2 traceability with FDA 21 CFR 211 compliance.
Custom Configurations:
- Basket Diameters: 200–2,000 mm with conical or cylindrical geometries for decanter or pusher centrifuges.
- Slot Patterns: Radial, helical, or axial orientations for sticky material handling (e.g., starch, polymer pellets).

Industrial Wedge Wire Centrifuge Basket: Industry Applications

Pharmaceuticals & Biotech:
- Viral Vector Harvesting: Electropolished 316L baskets (0.1 mm slots) for GMP-compliant bioreactors.
- Antibiotic Crystallization: Hastelloy C-22 baskets (50 µm slots) in sterile API production.
Mining & Chemicals:
- Copper Concentrate Dewatering: Duplex 2507 baskets (0.3 mm slots) for high-solids slurry separation.
- Sulfuric Acid Recovery: Titanium baskets (1 mm slots) in acid regeneration centrifuges.
Food & Beverage:
- Edible Oil Clarification: 904L stainless steel baskets (0.5 mm slots) for palm oil refining (3-A Sanitary Standard).
- Yeast Separation: Passivated 316SS baskets (0.2 mm slots) in brewery centrifuges.
Waste Management:
- Sewage Sludge Thickening: HDG carbon steel baskets (2 mm slots) for municipal wastewater plants.
- Plastic Recycling: Abrasion-resistant baskets (3 mm slots) for PET flake purification.

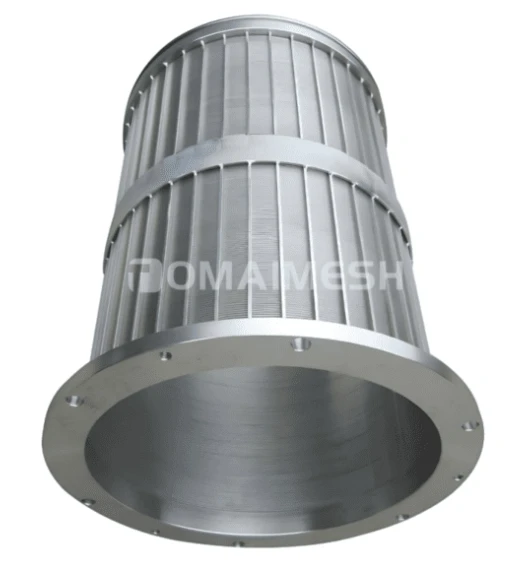

What Size Are Wedge Wire Centrifuge Basket

Wedge wire centrifuge baskets are precision-engineered components used in solid-liquid separation in centrifuge machines. They are constructed from V-shaped wedge wires wrapped around support rods, forming continuous slots that allow liquids to pass while retaining solids.

The sizes of wedge wire centrifuge baskets vary depending on the centrifuge model and application. Common diameters range from 200 mm to over 1,500 mm, while the height or length typically varies from 300 mm to 2,000 mm. Slot openings are customizable, usually between 0.1 mm and 5 mm, to suit different particle sizes and separation requirements. The basket thickness, wire diameter, and structural support can also be tailored to handle specific loads, rotational speeds, and material abrasiveness.

These baskets are widely used in chemical processing, mining, pharmaceuticals, and wastewater treatment. Their customizable sizes, durability, and corrosion resistance make them highly effective for efficient solid-liquid separation in demanding industrial applications.

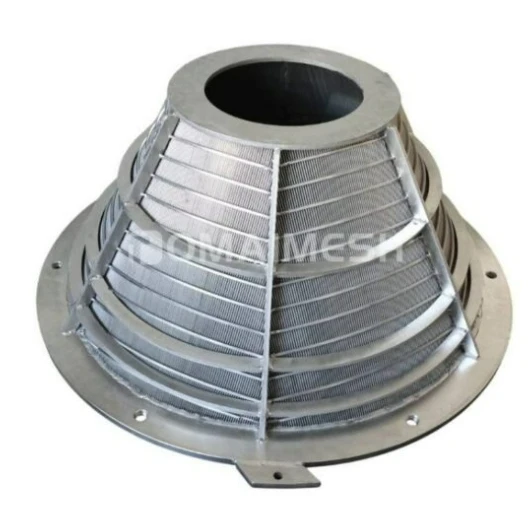

What Is The Principle Of Wedge Wire Centrifuge Basket

The principle of a wedge wire centrifuge basket is based on mechanical separation of solids from liquids using centrifugal force and precision slot filtration. The basket is made of V-shaped wedge wires wrapped around support rods, creating narrow, continuous slots that allow liquid to pass while retaining solid particles.

During operation, the basket spins at high speed inside the centrifuge. Centrifugal force pushes the liquid outward through the slots, while the solids are trapped inside the basket or on its surface. The wedge-shaped slot design prevents clogging because the narrow opening at the base of the V-shape allows solids to stay on the surface while the liquid drains efficiently.

This design ensures high separation efficiency, consistent flow, and easy cleaning, making wedge wire centrifuge baskets ideal for industries such as chemical processing, mining, wastewater treatment, and pharmaceuticals. The combination of centrifugal force and wedge wire slot geometry provides reliable, long-lasting solid-liquid separation in demanding industrial applications.
