Stainless Steel Perforated Filter Tube

Material: 304/316/316L Stainless Steel | Duplex Steel | Super Austenitic Alloys
Perforation Method: Laser Drilling | Precision Stamping
Hole Diameter: 0.5mm-20mm (±1% Precision, Radial/Helical Patterns)
Tube Dimensions: OD 10mm-300mm | Wall Thickness 0.5mm-5.0mm
Surface Finish: Electropolishing | Pickling Passivation | Anti-Fouling Coating
Applications: Wastewater Treatment | Chemical Reactors | Food-Grade Filtration

Send Email Download

Stainless Steel Perforated Filter Tub
Material Excellence

Premium Alloys:
- 304/304L SS: General-purpose grade with 18% Cr, 8% Ni, ideal for food processing or water treatment in mildly corrosive environments.
- 316/316L SS: Enhanced corrosion resistance (Mo content ≥2.1%, PREN ≥27) for chemical processing or marine applications exposed to chlorides.
- Duplex 2205: High strength (2x 316SS) and chloride resistance (PREN ≥35), used in offshore oil rigs or acidic wastewater systems.
- Super Austenitic 904L: Resists pitting in sulfuric acid (tested per ASTM A240), deployed in pharmaceutical CIP systems or mining slurry filtration.
Custom Hole Geometry:
- Hole Sizes: Ranging from 0.5mm to 25mm for coarse debris screening or fine particle retention.
- Patterns: Staggered, inline, or radial layouts with 5–60% open area, optimized for flow rates up to 500 m³/h.

Read More About 304 stainless steel perforated tube

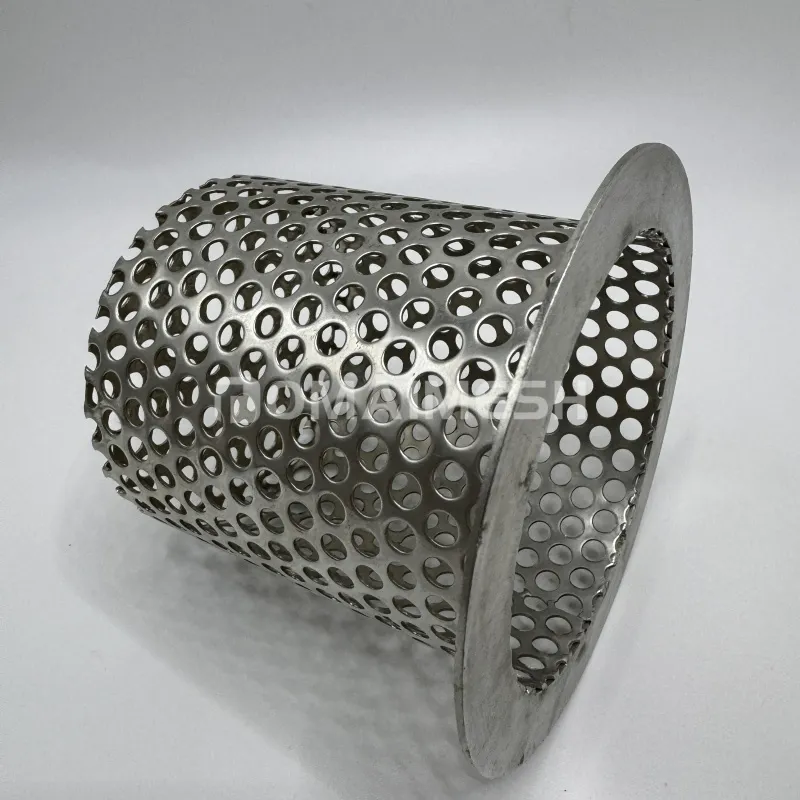

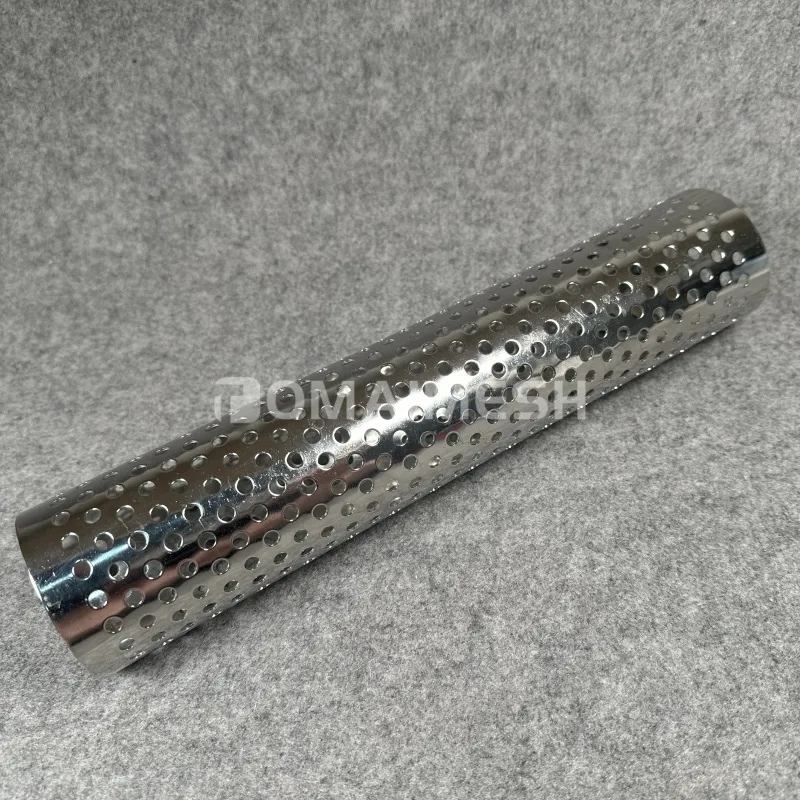

Read More About perforated stainless steel pipe tube

Stainless Steel Perforated Filter Tube
Engineering Features

Structural Integrity:
- Wall Thickness: 1mm–12mm to withstand pressures up to 150 bar (per ASME BPE standards).
- Reinforced Ends: Flanged, threaded, or welded connections (TIG or laser-welded) for high-vibration environments like hydraulic systems.
Surface Enhancements:
- Electropolishing: Achieves Ra ≤0.4µm surface finish to prevent biofilm adhesion in dairy processing or bioreactors.
- Passivation: Nitric acid treatment per ASTM A967 to maximize corrosion resistance in chlorinated water systems.
Thermal Adaptability:
- Operational Range: -200°C to 900°C (cryogenic LNG screens to incinerator ash filters).

Stainless Steel Perforated Filter Tube
Manufacturing Precision

Advanced Perforation Techniques:
- CNC Punching: ±0.1mm hole positional accuracy for pharmaceutical capsule sieves or fuel injector screens.
- Laser Cutting: Creates complex slot geometries (e.g., 0.3mm × 5mm slots) for polymer extrusion dies or battery electrode coating.
Quality Assurance:
- Dimensional Testing: CMM-verified hole alignment (per ISO 2768 tolerances).
- Pressure Testing: Hydrostatic validation to 1.5x working pressure (per ASME BPVC Section VIII).
Custom Fabrication:
- Tapered Designs: For cyclone separators or fluidized bed reactors.
- Multi-Layer Assemblies: Nested tubes with progressive hole sizes for multi-stage filtration.

Stainless Steel Perforated Filter Tube: Industry Applications

Oil & Gas:
- Sand Control Screens: 316L tubes with 100–300µm slots, rated for 10,000 psi in shale gas fracking.
- Scrubber Internals: Duplex 2205 tubes for sour gas treatment (H2S/CO2 removal).
Water Management:
- Well Screens: 304SS tubes with 1–5mm holes, NSF/ANSI 61-certified for potable water.
- Membrane Bio-Reactor (MBR) Diffusers: Laser-perforated 316L tubes for wastewater aeration.
Food & Beverage:
- Brewery Mash Tuns: Electropolished 304 tubes with 2mm holes, CIP/SIP compatible.
- Sugar Crystallizer Screens: 904L alloy for corrosion resistance in acidic syrups.
Energy:
- Geothermal Strainers: Super austenitic tubes handling 300°C brine with high silica content.
- Hydrogen Compressor Filters: 316SS tubes with 0.8mm holes for particulate removal.
Chemicals:
- Reactor Feed Screens: Hastelloy-clad tubes for sulfuric acid catalyst retention.
- Fluidized Bed Distributors: Custom-patterned 316L tubes for polyethylene granulation.

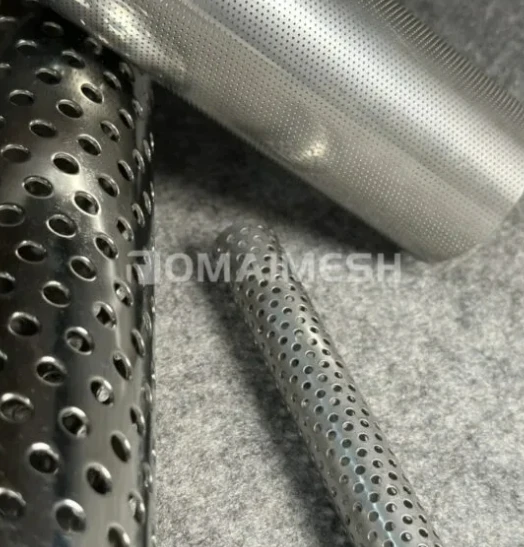

Stainless Steel Perforated Filter Tube Sizes

Stainless steel perforated filter tubes are widely used in filtration systems due to their strength, corrosion resistance, and long service life. These tubes are manufactured with evenly distributed holes that allow fluids or gases to pass through while blocking larger particles and debris. They are available in a wide range of sizes to meet different industrial needs. Common diameters range from 10 mm to over 300 mm, with wall thicknesses varying between 0.5 mm and 10 mm depending on pressure and flow requirements. The length of the tube can also be customized, typically from 100 mm up to several meters. Hole sizes and patterns, such as round, square, or slotted, can be designed to achieve specific filtration levels. Because stainless steel is durable and easy to clean, perforated filter tubes are commonly used in oil and gas, water treatment, food processing, and chemical industries. Their customizable sizes and designs make them a versatile and reliable solution for filtration applications.

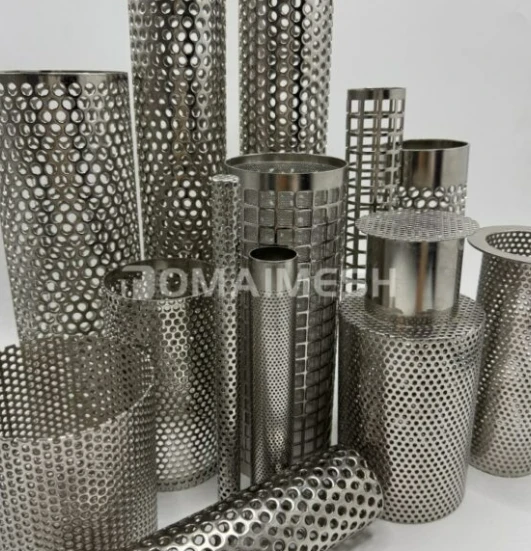

What Is Perforated Filter Tube

A perforated filter tube is a cylindrical filter made from metal, usually stainless steel, with a surface full of evenly distributed holes or slots. Its main function is to allow liquids or gases to flow through while blocking unwanted particles, debris, or contaminants. The perforations can be designed in different shapes—round, square, or slotted—depending on the filtration requirements.

These tubes are strong, durable, and resistant to corrosion, which makes them suitable for heavy-duty applications. They are often used in industries such as oil and gas, water treatment, food processing, pharmaceuticals, and chemical manufacturing. The size, thickness, and hole pattern of a perforated filter tube can be customized to control flow rate and filtration precision.

Because they can handle high pressure and are easy to clean and reuse, perforated filter tubes are considered a cost-effective and long-lasting filtration solution. In short, they serve as a reliable barrier that separates solids from fluids or gases in demanding environments.
